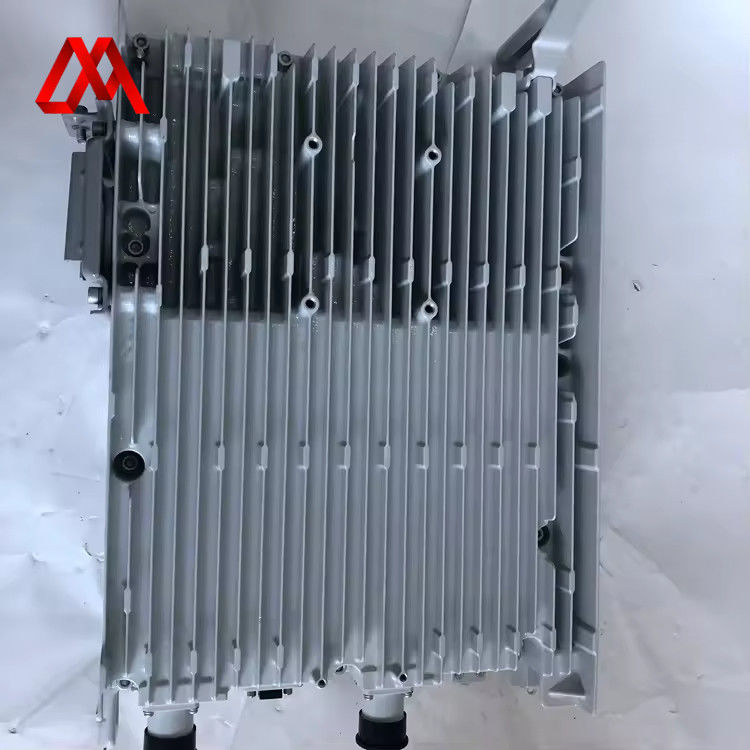

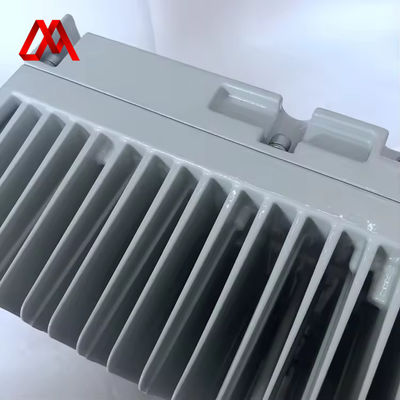

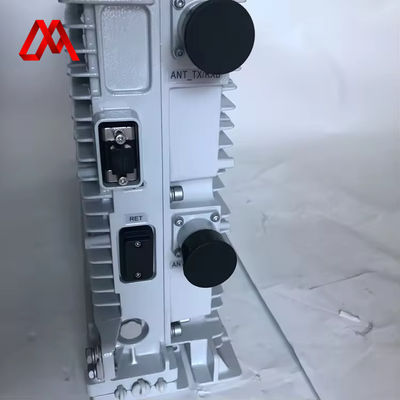

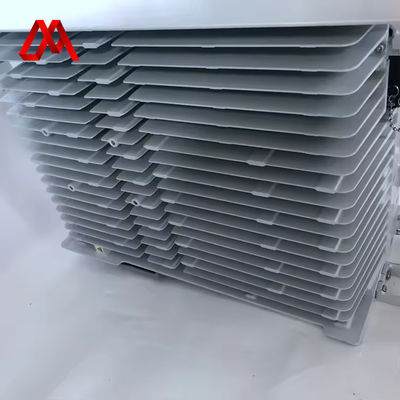

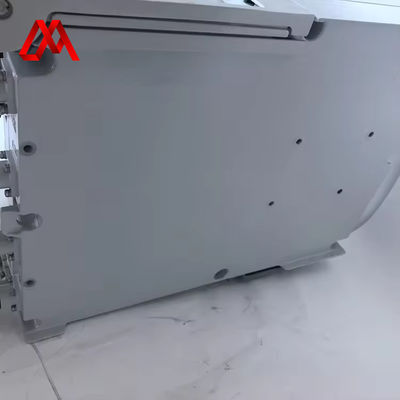

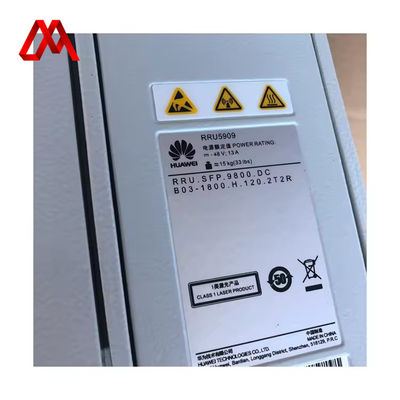

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Merknaam:	HUAWEI
Modelnummer:	RRU5909-1800 PPN
Verpakking:	Inwendige schuim+buiten karton, houten verpakking
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst:

China

Werkvochtigheid:

BBU: 5% tot 95%; RRU: 5% tot 95%

Bewaarvochtigheid:

BBU: 5% tot 95%; RRU: 5% tot 95%

Ondersteunde protocollen:

BBU: IP, TCP, UDP, SNMP; RRU: IP, TCP, UDP, SNMP

Ondersteunde interfaces:

BBU: CPRI, Ethernet, SFP, USB; RRU: CPRI, Ethernet, SFP, USB

Gewicht:

BBU: 5,5 kg; RRU: 7 kg

Werktemperatuur:

BBU: -40°C tot +55°C; RRU: -40°C tot +55°C

Bergingstemperatuur:

BBU: -40°C tot +70°C; RRU: -40°C tot +70°C

Productsoort:

Baseband Unit (BBU) en Remote Radio Unit (RRU)

Ondersteunde frequentiebanden:

BBU: GSM, UMTS, LTE, 5G; RRU: GSM, UMTS, LTE, 5G

Afmetingen:

BBU: 442 mm x 220 mm x 43,6 mm; RRU: 442 mm x 220 mm x 43,6 mm

Ondersteunde normen:

BBU: 3GPP, ITU-T, IEEE; RRU: 3GPP, ITU-T, IEEE

Maximaal energieverbruik:

BBU: 400W; RRU: 200W

Ondersteunde technologieën:

BBU: 2G, 3G, 4G, 5G; RRU: 2G, 3G, 4G, 5G

Stroomvoorziening:

BBU: AC 100V tot 240V; RRU: DC -48V tot -60V

Levering vermogen:

2000 stuks per week

Markeren:

1800 MHz Huawei 5G basisstation

RRU Huawei 5G basisstation

rru 5909 Basisstation

Productbeschrijving

RRU5909 technische specificaties

Ondersteunde frequentiebanden en RAT's

Frequentiebanden en RAT's die worden ondersteund door een RRU5909

Frequentieband (MHz)	Protocol-gedefinieerde band	RX-frequentieband (MHz)	TX-frequentieband (MHz)	RAT	IBW (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: 1710 tot 1785	1800: 1805 tot 1880	1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD)	1800:40:00
		2100: 1920 tot 1980	2100: 2110 tot en met 2170	2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD)	2100:40:00
				1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

TX/RX-modus en capaciteit
Tabel 2 TX/RX-modi en capaciteit van een RRU5909 (1800 MHz+2100 MHz)
Frequentieband (MHz)	Protocol-gedefinieerde band	TX/RX-modus (a)	Capaciteit b)	Ondersteunde bandbreedte (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: 4T4R	GSM: 8 dragers	LTE FDD: 5/10/15/20
		2100: 4T4R	UMTS: 8 dragers	NR SUL: 15/20
			LTE FDD: 3 dragers (één band) en 4 dragers (twee banden)	NR FDD:
			LTE NB-IoT: 1 drager	1800 MHz: 5/10/15/20/25/30
			NR SUL: 1 vervoerder	2100 MHz: 5/10/15/20/25/30/40
			NR FDD: 3 dragers (één band) en 4 dragers (twee banden)
a: mTnR in de kolom TX/RX Mode geeft aan dat de RF-module m zendkanalen en n ontvangkanalen gebruikt.
b: het aantal dragers in de kolom Capaciteit verwijst naar het maximale aantal dragers dat kan worden geconfigureerd voor de module met de RAT geconfigureerd;niet het aantal dragers dat voor één kanaal kan worden geconfigureerd. Voor details over de dragerconfiguraties op module- en kanaalniveau die worden ondersteund in single-mode- en multimode-scenario's, zie de kolom Output Power Configuration in de volgende tabel.Wanneer de module wordt gebruikt met een functie, zie de functiespecificaties in de overeenkomstige functieparameterbeschrijving om de dragerconfiguraties op module- of kanaalniveau te leren die worden ondersteund nadat de functie is ingeschakeld.

Ontmantelde RRU, waar de foto de componenten van de RRU laat zien, dus ik wilde deze foto met jullie delen.

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN 0

De afstandsbediening (RRU): een signaalverwerkingsunit, een vermogenversterker,en een dubbele zender die werkt om het signaal te versterken om het te behandelen van de vervalproblemen die zich voordoen als gevolg van de hoogte van de toren of als gevolg van de lengte van de kabels.

Functies

1- Basisbandsignalen verzenden en ontvangen.

2- Moduleer en demoduleer radiofrequentie signalen.

3- Verwerking van gegevens.

Versterk de signaalsterkte.

RRU-onderdelen

1-TRX & RX-platen:

- Verantwoordelijk voor de omvorming van de drager op en neer

- Verantwoordelijk voor modulatie en demodulatie

- Stel vertragingstoename in.

2-versterker:

- Verantwoordelijk voor het versterken van het signaal.

3- stroomvoorziening:

- Ik lever stroom aan de RRU.

4-Radio-duplexerfilteren:

- ontvangt filter en zendt duplexer

Huawei RRU-serie

1-RRUModellen van de serie 3000.

RRU3004, RRU3308v1, RRU3008v2, RRU3168, RRU3201, RRU3203, RRU3220, RRU3220E, RRU3221, RRU3222, RRU3229, RRU3230E, RRU3232, RRU3236E, RRU3240, RRU3249, RRU3251, RRU3252, RRU3253, RRU3256, RRU3259,RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829, RRU3832, RRU3838,RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961,RRU3962, RRU3965, RUR3971, RRU3971a

2- RRU5000-serieModellen.

Voor de toepassing van de in lid 1 bedoelde voorwaarden kan de bevoegde autoriteit van de lidstaat van herkomst de in lid 1 bedoelde vergunning verlenen aan de bevoegde autoriteit van herkomst.RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909,RRU5909N, RRU5909s, RRU5935E

Uitgangsvermogen en dragerconfiguraties

Tabel 1 RRU's van de reeks 3000
RRU-model	XTXR	Frequentieband ((MHz)	Ondersteunde RATs	Parameters van het apparaat
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE ((TDD)	RRU3168
RRU3201	2T2R	700	LTE ((FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE ((FDD)	RRU3203
RRU3220	2T2R	800	LTE ((FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE ((FDD)	RRU3220E
RRU3221	2T2R	2600	LTE ((FDD)	RRU3221
RRU3222	2T2R	800	LTE ((FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE ((FDD)	RRU3229
RRU3230E	2T2R	1800	LTE ((FDD),LTE ((NB-IoT),LM	RRU3230E
RRU3232	4T4R	3500	LTE ((TDD)	RRU3232
RRU3236E	2T2R	2300	LTE ((TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE ((FDD)	RRU3240
RRU3249	2T2R	700	LTE ((FDD)	RRU3249
RRU3251	2T2R	2300	LTE ((TDD)	RRU3251
RRU3252	4T4R	2300	LTE ((TDD)	RRU3252
RRU3253	8T8R	2600	LTE ((TDD)	RRU3253
RRU3256	4T4R	2300	LTE ((TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE ((TDD)	RRU3259
RRU3260	2T4R	2600	LTE ((FDD)	RRU3260
RRU3262	2T4R	700	LTE ((FDD),LM,LN ((SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE ((FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE ((FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE ((TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE ((TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE ((TDD)	RRU3278u
RRU3279	8T8R	2300	LTE ((TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE ((FDD)	RRU3281
RRU3668	2T2R	450	LTE ((FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE(FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE ((FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE(FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE ((FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM, UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM, UMTS, GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE(FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800 MHz: GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE(FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800 MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE (FDD),LM,LN (SUL)	RRU3965
			900 EGSM:UMTS,LTE(FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE(FDD),GL,UL,GUL,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL
RUR3971	4T4R	1800	LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3971a


Tabel 2 RRU's van de 5000-serie
RRU-model	XTXR	Frequentieband ((MHz)	Ondersteunde RATs	Parameters van het apparaat
RRU5251	4T4R	2300	LTE ((TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE(TDD),NR(TDD),TN(TDD)
RRU5258	8T8R	2300	LTE(TDD),NR(TDD),TN(TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE ((FDD)
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5304	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5305	2T0R	1400	LTE ((FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE ((FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5501
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),GULMN (FDD)
RRU5502	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE (FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5502N	4T4R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULMN(FDD)
RRU5502w	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502w
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505	2T2R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5505
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505N	2T2R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULMN(FDD)
RRU5507	2T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5507
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5508	2T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	1800+2100	1800MHz:LTE(FDD),GL,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD)
RR5509t	2T4R	700+800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700 MHz+800 MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5512	4T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	4T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
RR5512t	4T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700 MHz+800 MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5513	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5513
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5513t	4T4R	1800+2100+2600	1800 MHz:LTE(FDD),GL,NR(FDD),GN(FDD),LN(SUL),GLN(SUL),LN(FDD),GLN(FDD),LM(FDD),GLM(FDD),LMN(FDD),GLM(FDD)	RRU5513t
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE (FDD),LM,LN (SUL)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE ((FDD),LM,NR ((FDD),LN ((FDD),LMN ((FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5519et	2T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700 MHz+800 MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5810	8T8R	3600	LTE(TDD),NR(TDD),TN(TDD)	RRU5810
RRU5818	8T8R	2300	LTE(TDD),NR(TDD),TN(TDD)	RRU5818
	8T8R	2600	LTE ((TDD)
	8T8R	3500	LTE(TDD),NR(TDD),TN(TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800 MHz:	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE(FDD),UL
	LTE ((FDD): 8T8R		1800 MHz+2100 MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100 MHz:
	UMTS: 2T4R
	LTE ((FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
		AWS	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GLM (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLM (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD), LTE (NB-IoT), LM, LN (SUL), NR (FDD), LN (FDD), MN (FDD), LM (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLM (FDD)	RRU5904w
	4T4R	1800	GSM,LTE(FDD),GL,LTE(NB-IoT),GM,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),MN(FDD),GMN(FDD),LMN(FDD),GLMN(FDD)
	4T4R	1900	UMTS,LTE(FDD),GU,GL,UL,GUL,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909's	2T2R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5909's
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5935E	2T2R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5935E

Taggen:

Details Van De Producten

Huis > Producten >

HUAWEI BBU RRU

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Alle Categorieën

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

Merknaam:	HUAWEI
Modelnummer:	RRU5909-1800 PPN
Verpakking:	Inwendige schuim+buiten karton, houten verpakking
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst:

China

Merknaam:

HUAWEI

Modelnummer:

RRU5909-1800 PPN

Werkvochtigheid:

BBU: 5% tot 95%; RRU: 5% tot 95%

Bewaarvochtigheid:

BBU: 5% tot 95%; RRU: 5% tot 95%

Ondersteunde protocollen:

BBU: IP, TCP, UDP, SNMP; RRU: IP, TCP, UDP, SNMP

Ondersteunde interfaces:

BBU: CPRI, Ethernet, SFP, USB; RRU: CPRI, Ethernet, SFP, USB

Gewicht:

BBU: 5,5 kg; RRU: 7 kg

Werktemperatuur:

BBU: -40°C tot +55°C; RRU: -40°C tot +55°C

Bergingstemperatuur:

BBU: -40°C tot +70°C; RRU: -40°C tot +70°C

Productsoort:

Baseband Unit (BBU) en Remote Radio Unit (RRU)

Ondersteunde frequentiebanden:

BBU: GSM, UMTS, LTE, 5G; RRU: GSM, UMTS, LTE, 5G

Afmetingen:

BBU: 442 mm x 220 mm x 43,6 mm; RRU: 442 mm x 220 mm x 43,6 mm

Ondersteunde normen:

BBU: 3GPP, ITU-T, IEEE; RRU: 3GPP, ITU-T, IEEE

Maximaal energieverbruik:

BBU: 400W; RRU: 200W

Ondersteunde technologieën:

BBU: 2G, 3G, 4G, 5G; RRU: 2G, 3G, 4G, 5G

Stroomvoorziening:

BBU: AC 100V tot 240V; RRU: DC -48V tot -60V

Verpakking Details:

Inwendige schuim+buiten karton, houten verpakking

Levertijd:

5-8 werkdagen

Betalingscondities:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen:

2000 stuks per week

Markeren:

1800 MHz Huawei 5G basisstation

RRU Huawei 5G basisstation

rru 5909 Basisstation

Productbeschrijving

RRU5909 technische specificaties

Ondersteunde frequentiebanden en RAT's

Frequentiebanden en RAT's die worden ondersteund door een RRU5909

Frequentieband (MHz)	Protocol-gedefinieerde band	RX-frequentieband (MHz)	TX-frequentieband (MHz)	RAT	IBW (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: 1710 tot 1785	1800: 1805 tot 1880	1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD)	1800:40:00
		2100: 1920 tot 1980	2100: 2110 tot en met 2170	2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD)	2100:40:00
				1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

TX/RX-modus en capaciteit
Tabel 2 TX/RX-modi en capaciteit van een RRU5909 (1800 MHz+2100 MHz)
Frequentieband (MHz)	Protocol-gedefinieerde band	TX/RX-modus (a)	Capaciteit b)	Ondersteunde bandbreedte (MHz)
1800+2100	Band 3/n3+Band 1/n1	1800: 4T4R	GSM: 8 dragers	LTE FDD: 5/10/15/20
		2100: 4T4R	UMTS: 8 dragers	NR SUL: 15/20
			LTE FDD: 3 dragers (één band) en 4 dragers (twee banden)	NR FDD:
			LTE NB-IoT: 1 drager	1800 MHz: 5/10/15/20/25/30
			NR SUL: 1 vervoerder	2100 MHz: 5/10/15/20/25/30/40
			NR FDD: 3 dragers (één band) en 4 dragers (twee banden)
a: mTnR in de kolom TX/RX Mode geeft aan dat de RF-module m zendkanalen en n ontvangkanalen gebruikt.
b: het aantal dragers in de kolom Capaciteit verwijst naar het maximale aantal dragers dat kan worden geconfigureerd voor de module met de RAT geconfigureerd;niet het aantal dragers dat voor één kanaal kan worden geconfigureerd. Voor details over de dragerconfiguraties op module- en kanaalniveau die worden ondersteund in single-mode- en multimode-scenario's, zie de kolom Output Power Configuration in de volgende tabel.Wanneer de module wordt gebruikt met een functie, zie de functiespecificaties in de overeenkomstige functieparameterbeschrijving om de dragerconfiguraties op module- of kanaalniveau te leren die worden ondersteund nadat de functie is ingeschakeld.

Ontmantelde RRU, waar de foto de componenten van de RRU laat zien, dus ik wilde deze foto met jullie delen.

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN 0

Functies

1- Basisbandsignalen verzenden en ontvangen.

2- Moduleer en demoduleer radiofrequentie signalen.

3- Verwerking van gegevens.

Versterk de signaalsterkte.

RRU-onderdelen

1-TRX & RX-platen:

- Verantwoordelijk voor de omvorming van de drager op en neer

- Verantwoordelijk voor modulatie en demodulatie

- Stel vertragingstoename in.

2-versterker:

- Verantwoordelijk voor het versterken van het signaal.

3- stroomvoorziening:

- Ik lever stroom aan de RRU.

4-Radio-duplexerfilteren:

- ontvangt filter en zendt duplexer

Huawei RRU-serie

1-RRUModellen van de serie 3000.

2- RRU5000-serieModellen.

Uitgangsvermogen en dragerconfiguraties

Tabel 1 RRU's van de reeks 3000
RRU-model	XTXR	Frequentieband ((MHz)	Ondersteunde RATs	Parameters van het apparaat
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE ((TDD)	RRU3168
RRU3201	2T2R	700	LTE ((FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE ((FDD)	RRU3203
RRU3220	2T2R	800	LTE ((FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE ((FDD)	RRU3220E
RRU3221	2T2R	2600	LTE ((FDD)	RRU3221
RRU3222	2T2R	800	LTE ((FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE ((FDD)	RRU3229
RRU3230E	2T2R	1800	LTE ((FDD),LTE ((NB-IoT),LM	RRU3230E
RRU3232	4T4R	3500	LTE ((TDD)	RRU3232
RRU3236E	2T2R	2300	LTE ((TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE ((FDD)	RRU3240
RRU3249	2T2R	700	LTE ((FDD)	RRU3249
RRU3251	2T2R	2300	LTE ((TDD)	RRU3251
RRU3252	4T4R	2300	LTE ((TDD)	RRU3252
RRU3253	8T8R	2600	LTE ((TDD)	RRU3253
RRU3256	4T4R	2300	LTE ((TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE ((TDD)	RRU3259
RRU3260	2T4R	2600	LTE ((FDD)	RRU3260
RRU3262	2T4R	700	LTE ((FDD),LM,LN ((SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE ((FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE ((FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE ((TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE ((TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE ((TDD)	RRU3278u
RRU3279	8T8R	2300	LTE ((TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE ((FDD)	RRU3281
RRU3668	2T2R	450	LTE ((FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE(FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE ((FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE(FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE ((FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM, UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM, UMTS, GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE(FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800 MHz: GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE(FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800 MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE (FDD),LM,LN (SUL)	RRU3965
			900 EGSM:UMTS,LTE(FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE(FDD),GL,UL,GUL,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL
RUR3971	4T4R	1800	LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL)	RRU3971a


Tabel 2 RRU's van de 5000-serie
RRU-model	XTXR	Frequentieband ((MHz)	Ondersteunde RATs	Parameters van het apparaat
RRU5251	4T4R	2300	LTE ((TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE(TDD),NR(TDD),TN(TDD)
RRU5258	8T8R	2300	LTE(TDD),NR(TDD),TN(TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE ((FDD)
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5304	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD), NR (FDD), LN (FDD)
RRU5305	2T0R	1400	LTE ((FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE ((FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5501
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),GULMN (FDD)
RRU5502	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE (FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5502N	4T4R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULMN(FDD)
RRU5502w	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5502w
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505	2T2R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5505
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5505N	2T2R	1800+2100	1800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULMN(FDD)
RRU5507	2T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5507
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5508	2T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	2T4R	1800+2100	1800MHz:LTE(FDD),GL,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD)
RR5509t	2T4R	700+800+900	800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700 MHz+800 MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5512	4T4R	700+850	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
	4T4R	700+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD),GULMN(FDD)
RR5512t	4T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD)
			700 MHz+800 MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5513	4T4R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5513
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
RRU5513t	4T4R	1800+2100+2600	1800 MHz:LTE(FDD),GL,NR(FDD),GN(FDD),LN(SUL),GLN(SUL),LN(FDD),GLN(FDD),LM(FDD),GLM(FDD),LMN(FDD),GLM(FDD)	RRU5513t
			2100 MHz:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE (FDD),LM,LN (SUL)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE ((FDD),LM,NR ((FDD),LN ((FDD),LMN ((FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5519et	2T4R	700+800+900	700 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800 MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900 MHz: GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700 MHz+800 MHz:LTE(FDD),LM,LN(SUL),NR(FDD),LN(FDD),LMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULMN (FDD),GULMN(FDD)
RRU5810	8T8R	3600	LTE(TDD),NR(TDD),TN(TDD)	RRU5810
RRU5818	8T8R	2300	LTE(TDD),NR(TDD),TN(TDD)	RRU5818
	8T8R	2600	LTE ((TDD)
	8T8R	3500	LTE(TDD),NR(TDD),TN(TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800 MHz:	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE(FDD),UL
	LTE ((FDD): 8T8R		1800 MHz+2100 MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100 MHz:
	UMTS: 2T4R
	LTE ((FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
		AWS	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GLM (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLM (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD), LTE (NB-IoT), LM, LN (SUL), NR (FDD), LN (FDD), MN (FDD), LM (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UMN (FDD),GLM (FDD)	RRU5904w
	4T4R	1800	GSM,LTE(FDD),GL,LTE(NB-IoT),GM,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),MN(FDD),GMN(FDD),LMN(FDD),GLMN(FDD)
	4T4R	1900	UMTS,LTE(FDD),GU,GL,UL,GUL,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),GUMN
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909's	2T2R	1800	LTE (FDD), GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD)	RRU5909's
	2T2R	2100	UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD
RRU5935E	2T2R	1800+2100	1800 MHz:LTE(FDD),GL,LM,GLM,NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD)	RRU5935E

Taggen:

Nokia BBU RRU

Ericsson BBU RRU

HUAWEI BBU RRU

Hardeschijfstation

Toegangspunt

Ethernet-switch

Nokia BBU RRU

Ericsson BBU RRU

HUAWEI BBU RRU

Hardeschijfstation

Toegangspunt

Ethernet-switch

details van de producten

Nokia BBU RRU

Ericsson BBU RRU

HUAWEI BBU RRU

Hardeschijfstation

Toegangspunt

Ethernet-switch

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

1800 MHz Huawei 5G basisstation

RRU Huawei 5G basisstation

rru 5909 Basisstation

Huawei RRU

rru-afstandsbediening

Huawei 5G basisstation

Details Van De Producten

Nokia BBU RRU

Ericsson BBU RRU

HUAWEI BBU RRU

Hardeschijfstation

Toegangspunt

Ethernet-switch

1800mHz Huawei 5G basisstation BTS RRU 5909 SFP.9800.DC B03 120.2T2R PPN

1800 MHz Huawei 5G basisstation

RRU Huawei 5G basisstation

rru 5909 Basisstation

Huawei RRU

rru-afstandsbediening

Huawei 5G basisstation
